Public Address Amplifier
Current Location: Categories
New ProductsPublic Address Amplifier » MA-8 series
Product Details
Individual volume control
•Low and high tone control
•5-element LED level meter is provided for quick and easy visual monitoring of sound level
•Short-circuit protection and alarm
•Chime out prior to other inputs
•Individual distributor for 6 channels

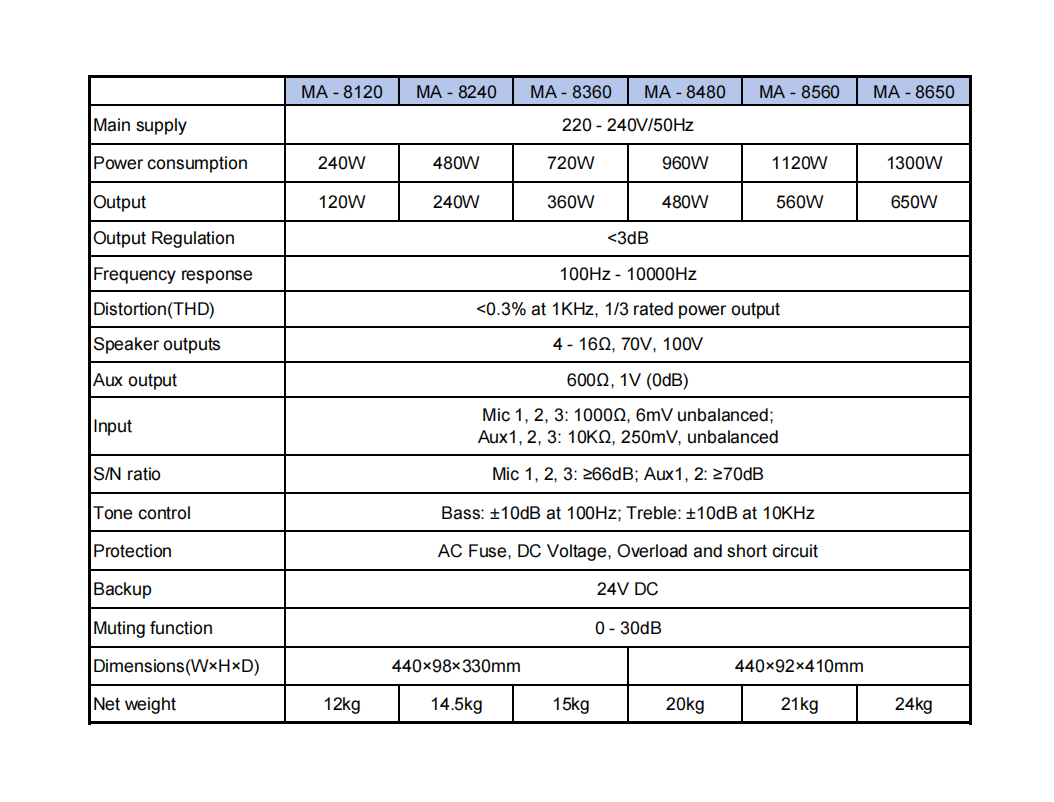

•Specification:
•Input:
•Mic 1/2/3: 600Ω and 6mΩ unbalanced
•Aux 1/2/3: 10kΩ and 250mΩ unbalanced
•S/N ratio:
•Mic 1/2/3: ≥66dB
•Aux 1/2: ≥70dB
•Tone control:
•Bass: ±10dB at 100Hz
•Treble: ±10dB at 10kHz
•Main supply: 220 to 240V/50Hz
•Power consumption: 720W
•Output power: 360W
•Output regulation: <3dB
•Frequency response: 100 to 16,000Hz
•Distortion (THD): <0.3% at 1kHz and 1/3 rated power
•Speaker output: 4 to 16Ω and 70/100V
•Aux output: 600Ω/1V (odBV)
•Protection: AC fuse, DC voltage, over-load and short-circuit
•Backup: 24V DC
•Muting function: 0 to 30dB
•Dimension (W x H x D): 440 x 92 x 330mm
•Three microphone inputs, three auxiliary inputs and one auxiliary output for link
•Transformer isolated
•Packing:
•
Net weight: 24kg
